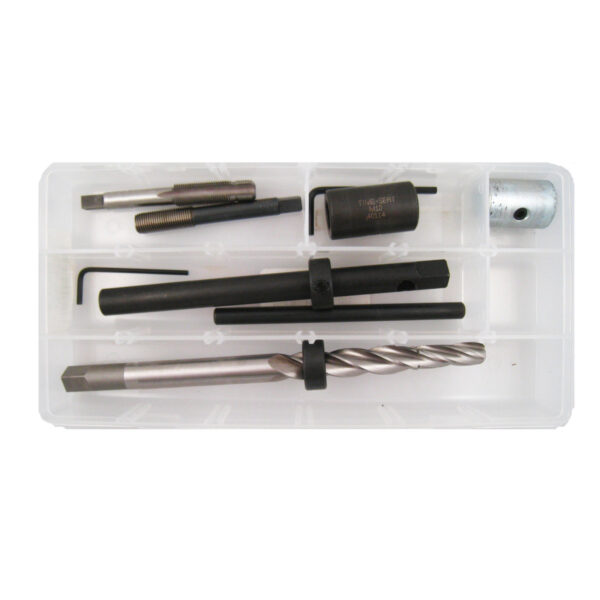

Time-Sert 4010E M10 x 1.0mm Deep Hole Metric Spark Plug Repair Kit

Description

Time Sert 4010E M10x1.0 kit tooling works very well in holes 6″ deep or more.

This tooling will repair spark plugs that are fully threaded or
a half threaded plug as in the NGK spark plugs p/n CR9EHIX-9
which has a straight section between the threads and washer.

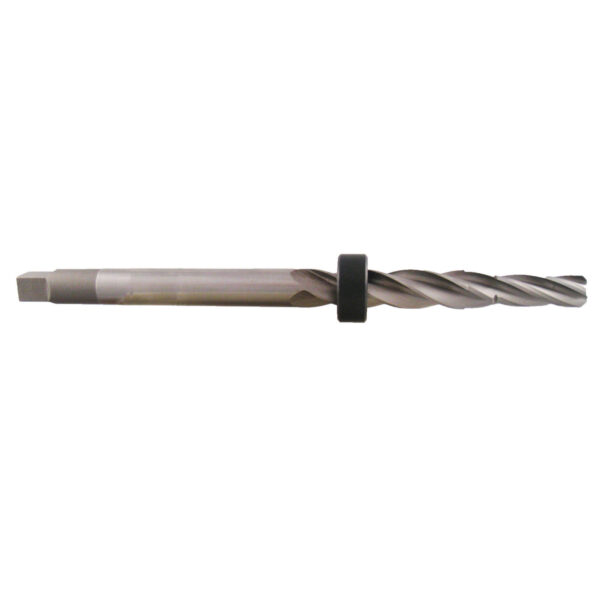

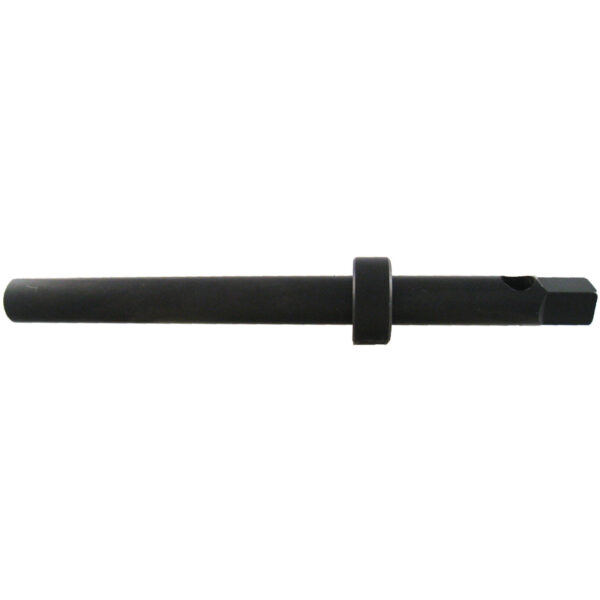

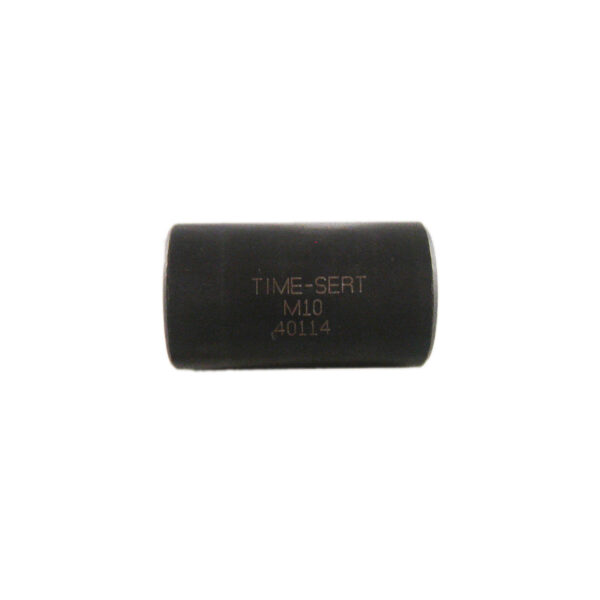

There are 2 movable collars included, the long black collar will repair full thread

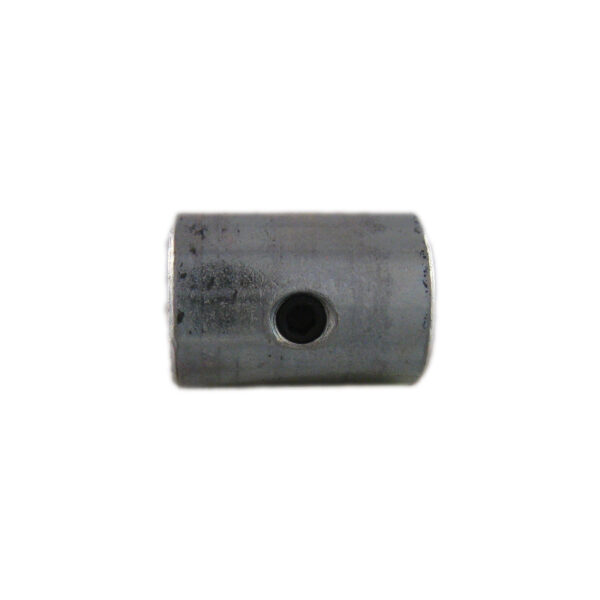

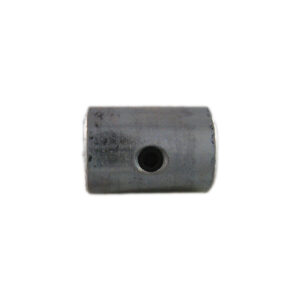

spark plugs which are flush to the surface and the silver collar will create a
special countersink step required for the CR9EHIX-9 Honda style spark plugs.

Inserts not included order separately.
If repairing the CR9EHIX-9 style plugs use the 9mm length insert p/n 40101.
You will use the silver collar to create the countersink step as per the instruction.

M10x1.0 extended p/n 4010E INSTRUCTIONS
These instructions are specific to the 4010E only.

THIS KIT DOES NOT CONTAIN INSERTS.

PLEASE ORDER YOUR INSERTS FROM THE LINKS BELOW.

Click here: for video instructions

Order Washer Seat Inserts Click Here

Get Useful Tools, Tap Guides, and More Click Here



Additional information

Weight	1 lbs
Dimensions	6 × 4 × 2 in
